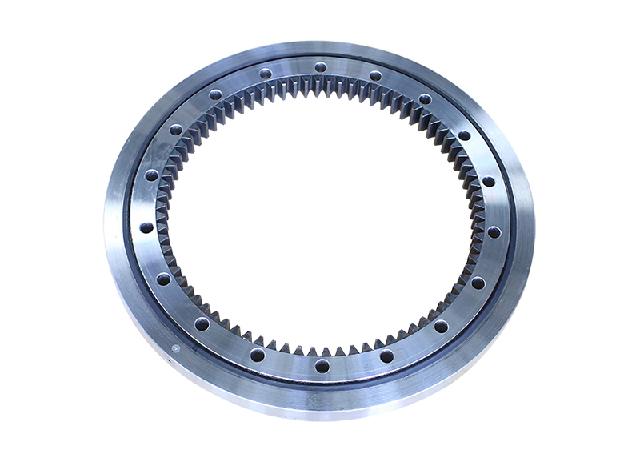

Double-Row Ball Slewing Bearing (Standard 02 Series)
CHARACTERISTIC OF STRUCTURE,PERFORMANCE AND APPLICATION
The double-row Ball slewing bearing has three seat-rings.The steel balls and the spacers may be directly arranged into the upper and lower races.Two rows of steel balls with different diameters are fitted according to the force bom.
Such open mode fitting features extraordinary convenience.The load angles of both upper and lower races are 90��,which enable the bearing to bear large axial force and the tipping moment.
When the radial force is larger than 1/10 of the axail force the races should be newly designed.
As the axle and the dimension of the double-row ball slewing bearing are rather large,the bearing construction is sturdy ,hence it is especially suitable for tower cranes which require working radius over medium range,mobile cranes and loading and unloading machines.
1.nl-number of lubricating holes,evenly distributed,lubricating nipple M10*1 JB/T7940.1-JB/T7940.2.
2.Mounting hole n-??,may be replaced with screw hole,tooth width b may be taken as H-h.
3.Gear force of periphery given in the table is its maximum value,nominal force of periphery is taken 1/2 of the given value.
4.The trim top coefficient of outer and inner tooth 0.1 and 0.2 respectively.
